LOFT

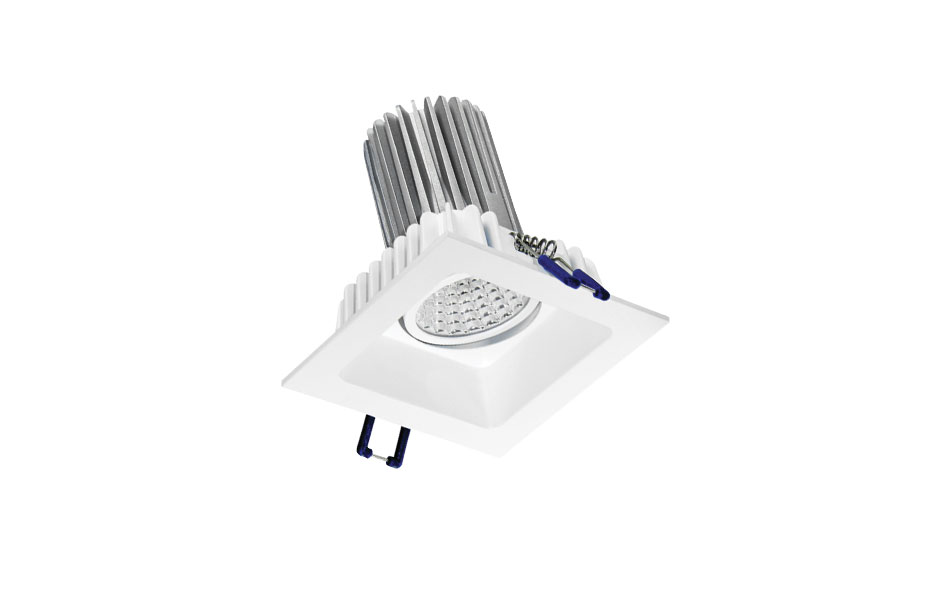

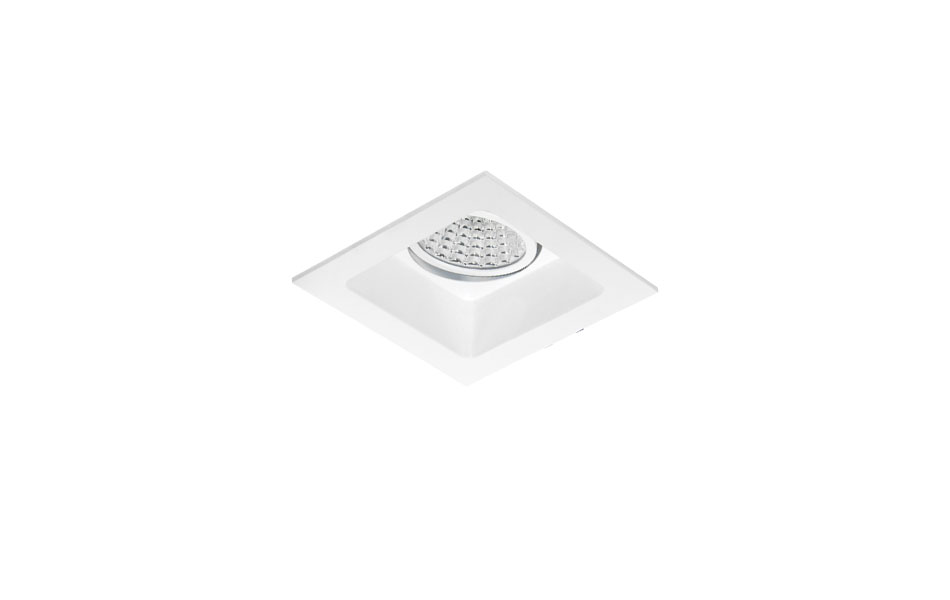

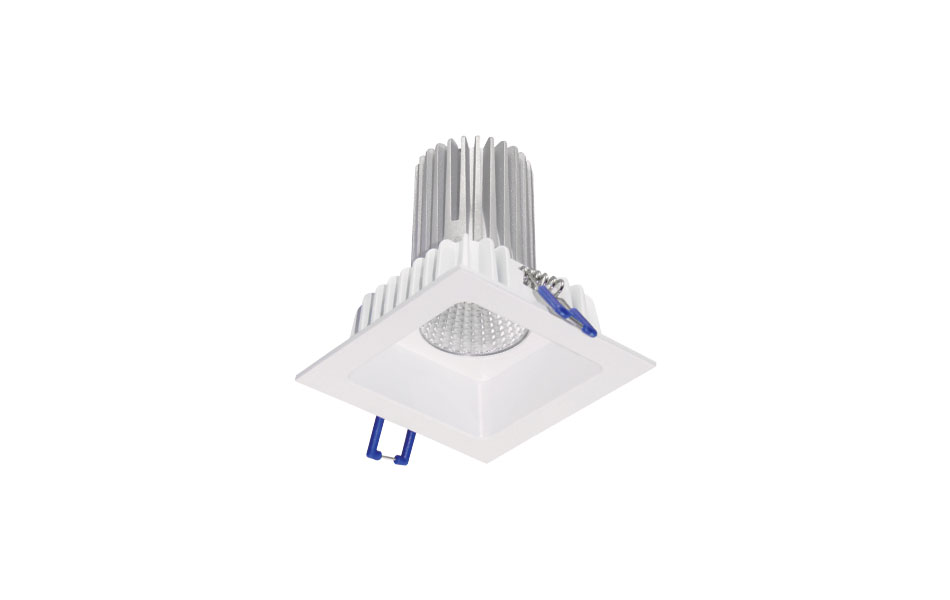

• Recessed square set-back downlight • Fixed or Adjustable versions • Matt White Trim with lofted bezel for reduced glare • Bridgelux 9W or 15W LED Engines • CRI 80+ as standard • 20° Spot, 40° Medium & 55° Flood beam angles • 2700K, 3000K and 4000K colour temperatures • Fixed Output, L&TE, 0-10V, DALI Dimming or Casambi control

DIMENSIONS

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	90x90 (W) x 80 - 102 (H)
Cut-out (mm):	75x75 (W)
Lifetime:	50,000 hrs
Mounting Type:	Recessed Trim
Finish:	Matt Black, Matt White, Silver.
Emergency:	Remote 3-hour Standard or DALI emergency
Weight:	< 1.0 kg
Lighting Options
Light Source:	9W CREE COB LED or 15W Bridgelux LED
Driver:	Fixed Output, L&TE, 0-10V, DALI dimmable or Casambi control
Colour Temperature:	2700K, 3000K, 4000K
Beam Angle:	20°, 40°, 55°
Diffuser:	N/A
Operating Voltage:	230V DC 200 - 450mA
IP Rating:	IP20
CRI:	CRI 80+
Delivered Lumens (lm):	665lm \| 1030lm
Power Consumption (W):	9W \| 15W
Efficiency (lm/W):	75lm/W
Optional Extras:	Daylight sensors, PIR sensors and emergency conversions
