VARIBEAM

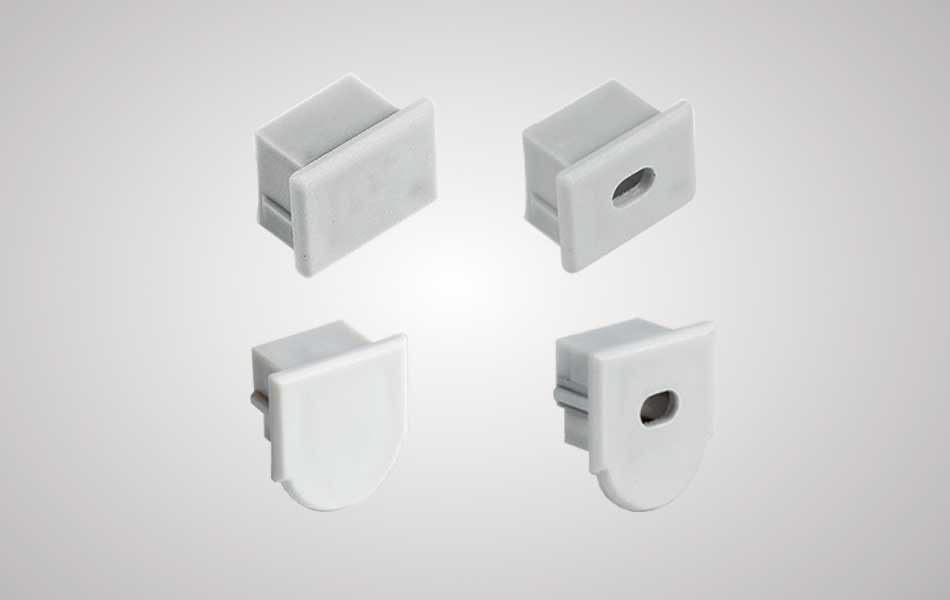

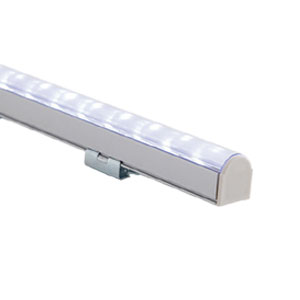

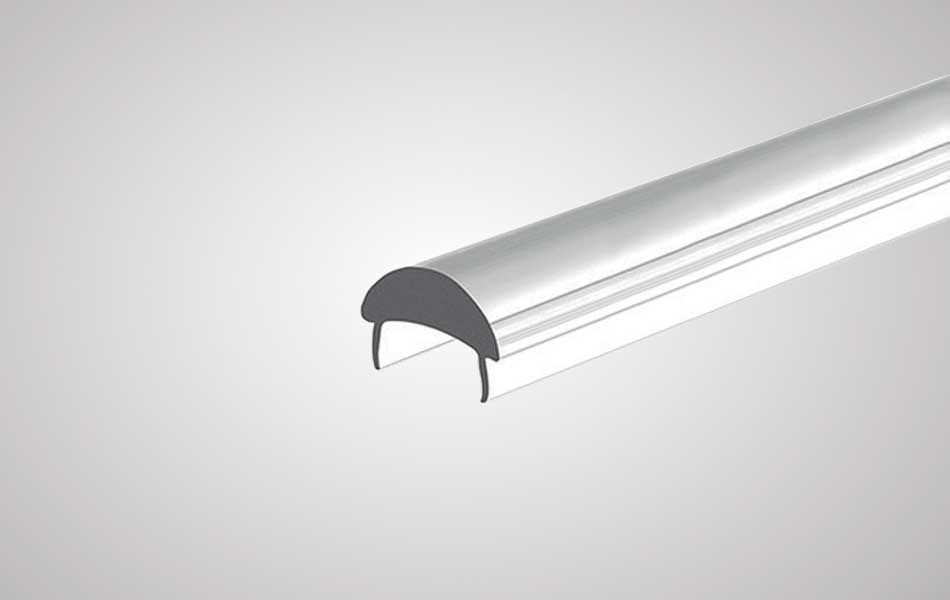

A 16mm wide decorative anodised aluminium profile, with a round or flat diffuser in opal or clear. The mounting channel within offers variable beam angles to be set, and the mounting clips offer surface mounted or suspended mounting. The specifier can dictate the length and configuration of the product. This profile is available in 2 metre sections and can be cut on-site or ordered Made to Measure, Diffuser and End Caps are included. Light your profile with our extensive selection of LED specifications and control options. This profile can take linear SMD LEDs up to 11mm wide.

Choose your LED light source and control options from our range of LED Tapes & Boards.

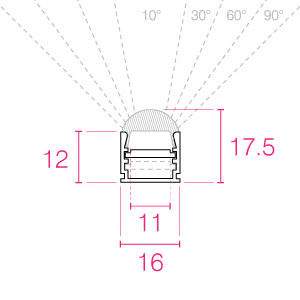

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 16 (W) x 17.5 (D) x 2000mm or Made-to-Measure Lengths.
Cut-out (mm): N/A
Lifetime: 50,000 hrs
Mounting Type: Surface Mounted, Suspended
Finish: Anodised Aluminium.
Emergency: N/A
Weight: <1.0kg per Metre
Lighting Options
Light Source: Opteflex 4.8W | Opteflex 9.6W | Opteflex Tuneable White | Opteflex Colour
Driver: Fixed Output, 0-10V, DALI, DMX
Colour Temperature: 2700K, 3000K, 4000K, Tuneable White (2800K - 6500K)
Beam Angle: N/A
Diffuser: Clear optic
Operating Voltage: 24V
IP Rating: IP20 (IP rated on request)
CRI: 80+
Delivered Lumens (lm): 300-346 lm/M | 660-720 lm/M | 756-840 lm/M | up to 420 lm/M
Power Consumption (W): 4.8W/M | 9.6W/M | 16.8W/M | 9.6W/M
Efficiency (lm/W): up to 75 lm/W
Optional Extras: IP rated versions on request
Additional Information
11 mm wide channel for LED Tapes & Boards
