COUPOLE

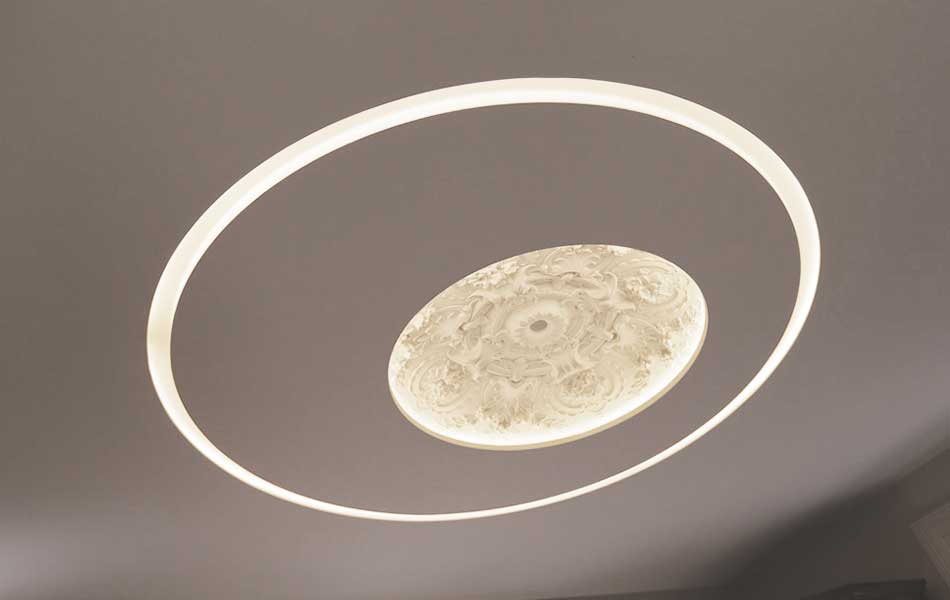

• Indirect glare-free lighting in a recessed plaster dome

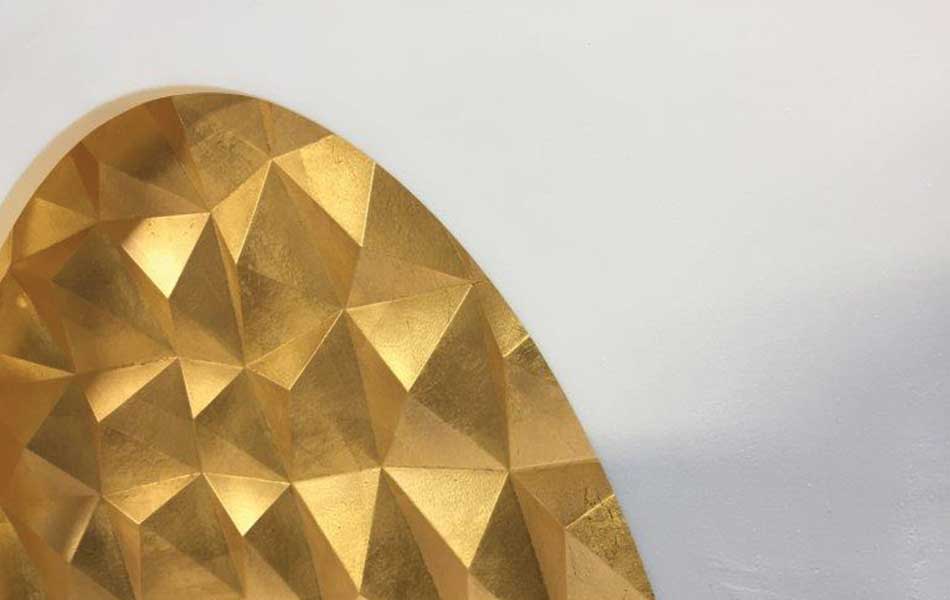

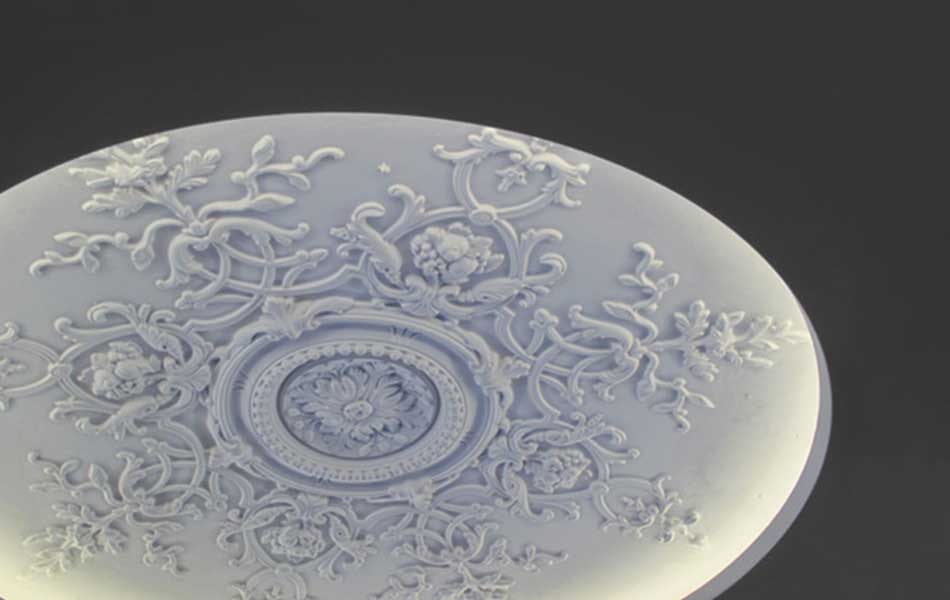

• Sculpted decorative versions in period or contemporary style
• High strength reinforced natural gypsum plaster from France
• Indirect lighting in a range of colour temperatures and colours
• A range of dimming/control options including Fixed Output, 1-10V, DALI, Push-Dim or Casambi control
• High quality CRI 90+ LEDs
• Natural plaster finish can be painted on-site

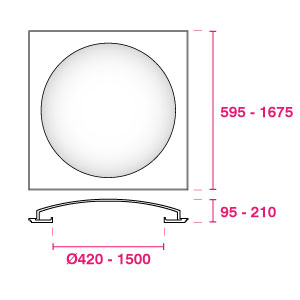

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 300 - 1500 (Ø) x 75 - 210 (D)
Cut-out (mm): 595x595 - 1675x1675 (W)
Lifetime: 50,000 hrs
Mounting Type: Recessed Plaster-in
Finish: Natural Plaster.
Emergency: N/A (Separate Emergency lighting products available on request)
Weight: 4.0 - 40.0 kg
Lighting Options
Light Source: Opteflex Medium Power 14.4W/M LED Opteflex High Power 19.2W/M LED
Driver: Fixed Output, DALI, 0-10V, Mains Dimmable, Casambi control*
Colour Temperature: 2700K, 3000K, 4000K, 6500K
Beam Angle: N/A (INDIRECT)
Diffuser: N/A (INDIRECT)
Operating Voltage: 24V
IP Rating: IP20
CRI: CRI 90+
Delivered Lumens (lm): from 1620lm to 10940lm*
Power Consumption (W): from 18W to 96W
Efficiency (lm/W): up to 114lm/W
Optional Extras: Alternative finishes, LED sources (RGB/Tuneable) and surface styles on request
Additional Information
* Opteflex Medium or High Power 4000K LED Source lumens. Alternate LED options on request.
