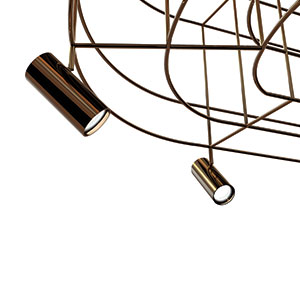

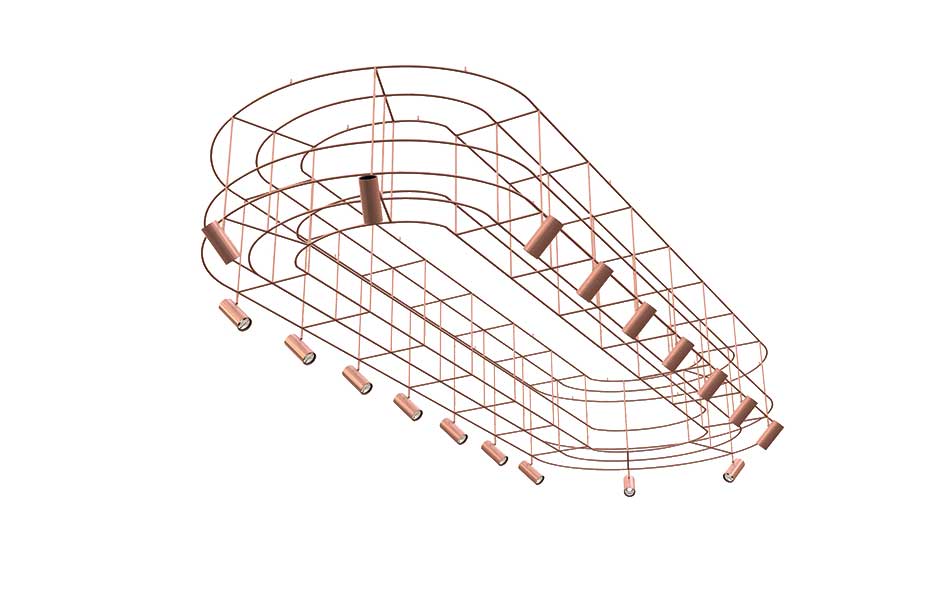

• 48V spotlight with 360° rotation on a decorative tubular frame • XICATO Artist LED with a 2-step MacAdam CRI of 95+ • Lumen outputs from 700lm to 2000lm • 10° Tightspot, 20° Spot, 40° Medium and 60° Flood • 2700K, 3000K, 3500K and 4000K colour temperatures • Fixed Output, 1-10V and DALI Dimming options • Antiglare accessories including Honeycomb, Ring and Cone • Matt White, Matt Black and custom finishes

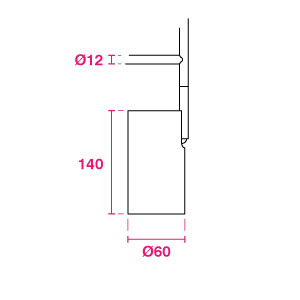

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): Low/Medium power: 60 (D) x 140 (H) High power: 76 (D) x 160 (H)
Cut-out (mm): N/A
Lifetime: 50,000 hrs
Mounting Type: (Frame) Surface Mounted, Suspended*
Finish: Matt White, Matt Black and many custom finishes on request.
Emergency: on request
Weight: approx 1.0 kg per Metre (varies)
Lighting Options
Light Source: XICATO Artist LED
Driver: Fixed Output, 1-10V, DALI
Colour Temperature: 2700K, 3000K, 3500K, 4000K
Beam Angle: 10° Tight Spot, 20° Spot, 40° Medium, 60° Flood
Diffuser: N/A
Operating Voltage: 48V
IP Rating: IP20
CRI: CRI 95+
Delivered Lumens (lm): up to 2000 lm
Power Consumption (W): up to 24.2 W
Efficiency (lm/W): up to 83 lm/W
Optional Extras: Anti-glare accessories: Honeycomb, Ring, Cone
Additional Information
* Rod suspended or Wire suspended frame.
