FIRO NANO


• Site-specific lengths to the nearest millimetre, lit continuously • Surface mounted inside a pelmet or cove • Direct lighting with a Clear or Opal Polycarbonate diffuser • A range of available LED sources up to 8mm wide • Control options include Fixed Output, DALI dimmable or 1-10V • Anodised Aluminium, Anodised Black, Anodised Bronze and Laquered White (RAL 9016) finishes available as standard.

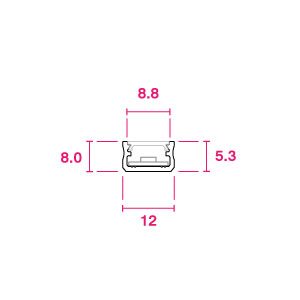

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 12 (W) x 8.0 (H) x 3000mm or Made-to-Measure Lengths
Cut-out (mm):
Lifetime: 50,000 hrs
Mounting Type: Surface Mounted

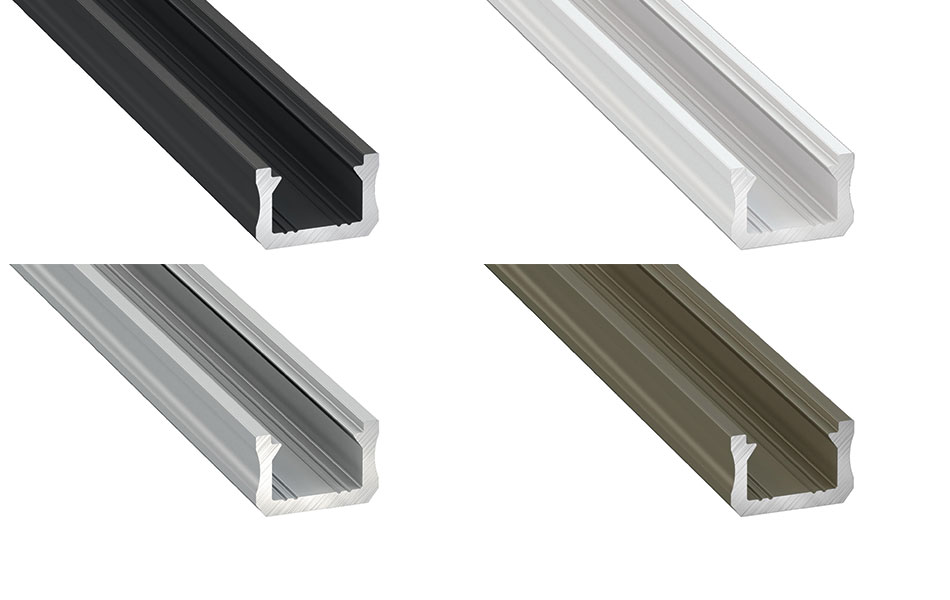

Finish: Matt Black, Matt White, Anodised Aluminium and many others on request.
Emergency:
Weight: < 1.0 kg/M
Lighting Options
Light Source: Opteline LED board (and many more options)
Driver: Fixed Output, 0-10V, DALI
Colour Temperature: 2700K, 3000K, 4000K, 6500K
Beam Angle: 120°
Diffuser: Opal, Clear
Operating Voltage: 24V
IP Rating: IP20 (IP rated on request)
CRI: CRI 90+
Delivered Lumens (lm): 956-1028 lm/M
Power Consumption (W): 16 W/M
Efficiency (lm/W): 64.25 lm/W
Optional Extras: IP rated versions on request
Additional Information
8mm wide flexible LED channel
