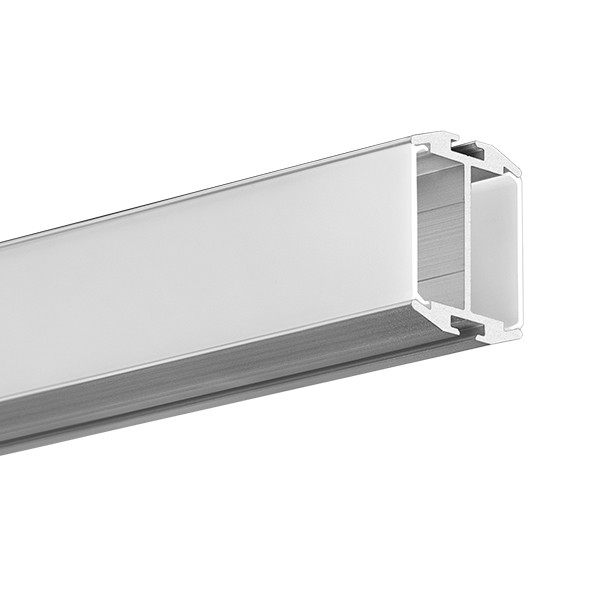

NAOS


• Twin Light emitting profile • Supplied as a straight or curved solution (Min bend radius of 240mm) • Made-to-measure lengths (Max. single run 3000mm) • Silver Anodised, colours available on request • IP20, higher IP available on request • Wide range of LED sources available (up to 12mm wide). • Driver/control options include Fixed Output, Mains Dimmable, 1-10V Dimmable & DALI Dimmable control.

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 29mm x 24mm x 3000mm or Made-to-Measure Lengths
Cut-out (mm): N/A
Lifetime: 50,000 hrs
Mounting Type: Suspended
Finish: Anodised Silver, colours available on Request.
Emergency: on request
Weight: < 1.0 kg
Lighting Options
Light Source: Opteflex LED tape, Opteflex Flow LED (Continuous COB)
Driver: Fixed Output, 0-10V, DALI
Colour Temperature: 2700K, 3000K, 4000K, 6500K
Beam Angle:
Diffuser: Frosted, Clear, Black
Operating Voltage: 24V
IP Rating: IP20
CRI: CRI 90+
Delivered Lumens (lm): 338-358 lm/M | 676-715 lm/M | 500-1600 lm/M
Power Consumption (W): 4.8 W/M | 9.6W/M | 5-16 W/M
Efficiency (lm/W): 74.5lm/W | 74.5lm/W | 100lm/W
Optional Extras: IP rated versions on request
Additional Information
12mm wide LED channel
