QUAD 38 +

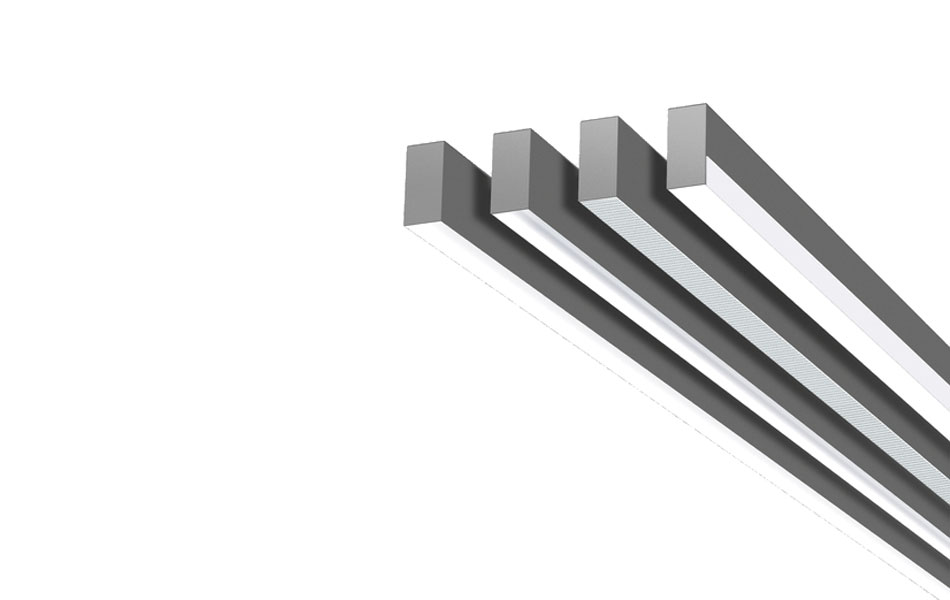

• Recessed, Surface Mounted and Suspended linear lights
• Standard modular lengths with Fast-Track lead times
• Direct or Direct-Indirect lighting with a choice of Medium/High Power, Lens Louver and Asymmetric Wallwash LED
• Compact fixed output drivers, or a range of dimming options including DALI, 1-10V, Switch-Dim or Casambi control
• Available on request – corner modules, curves, sensors, Integrated emergency conversions, IP54 rated and more
• White, Black, Silver, Graphite, Copper and Champagne finish

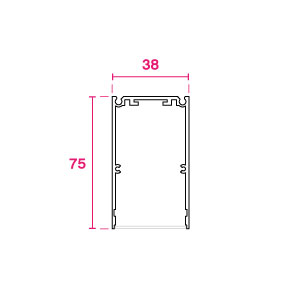

DIMENSIONS

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	Direct Only: 38 (W) x 75 (H), Direct-Indirect: 38 (W) x 85 (H)
Cut-out (mm):	Direct Only: 42 (W) x 120 (H) including recessing bracket
Lifetime:	50,000 hrs
Mounting Type:	Recessed, Surface, Suspended
Finish:	White, Black, Silver, Graphite, Copper, Champagne Gold.
Emergency:	DALI or Standard emergency conversion
Weight:	-
Lighting Options
Light Source:	Medium Power, High Power
Driver:	Fixed Output, 1-10V, DALI, Touch Dim, Casambi control
Colour Temperature:	2200K, 2700K, 3000K, 3500K, 4000K, 6500K
Beam Angle:	(Direct only 100% or Direct-Indirect 45/55%)
Diffuser:	Opal, MPO, Ambient, Asymmetric Wallwasher (Lens Louver on request)
Operating Voltage:	230V
IP Rating:	IP20 (IP54 rated on request)
CRI:	CRI80, CRI90
Delivered Lumens (lm):	Direct only: up to 1830lm/M, Direct-Indirect: up to 3910lm/M
Power Consumption (W):	Direct only: 17W/M, Direct-Indirect: 30W/M
Efficiency (lm/W):	up to 118 lm/W
Optional Extras:	Integrated Track, sensors, spotlights and 90° corners on request
