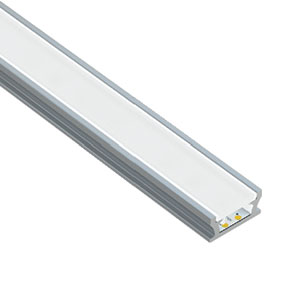

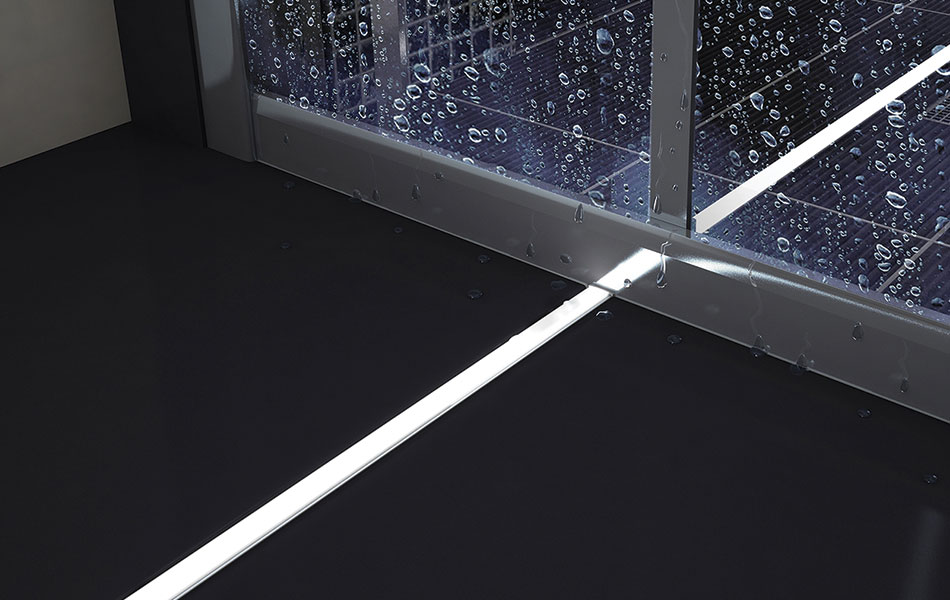

• In-ground recessed walk-over lighting profile. • Made-to-measure lengths (Max. single run 3000mm). • Standard finishes Anodised Silver or Matt White. • End-caps and mitred corners/change-of-plane available. • IP20 as standard, IP65 conformal coating on request. • Wide range of LED sources available (up to 10mm wide). • Driver/control options include Fixed Output, Mains Dimmable, 1-10V Dimmable, DALI Dimmable and DMX control.

Product Options
Dimensions (mm):	20 (W) x 9 (H) x 3000mm or Made-to-Measure Lengths
Cut-out (mm):	20 (W) x 9 (H) x 3000mm or Made-to-Measure Lengths
Lifetime:	50,000 hrs
Mounting Type:	In-ground Recessed
Finish:	Anodised Silver, Matt White.
Emergency:	Remote 3-hour emergency conversion on request (not full length)
Weight:	< 1.5 kg
Lighting Options
Light Source:	Opteline LED Board | Opteflex Medium Power LED | Opteflex Tuneable LED (Med.)
Driver:	Fixed Output, 0-10V, DALI, DMX
Colour Temperature:	2700K, 3000K, 4000K, 6500K, 1800K-6500K Tuneable White
Beam Angle:
Diffuser:	Opal, Clear
Operating Voltage:	24V
IP Rating:	IP20 (IP rated up to IP65 on request)
CRI:	CRI 90+
Delivered Lumens (lm):	1382-1578 lm/M | 673-1036 lm/M | 1170-1203 lm/M
Power Consumption (W):	16W/M | 14.4W/M | 33.6W/M
Efficiency (lm/W):	98.6lm/W | 72lm/W | 36lm/W
Optional Extras:	IP rated versions on request

Additional Information
10mm wide flexible LED channel
