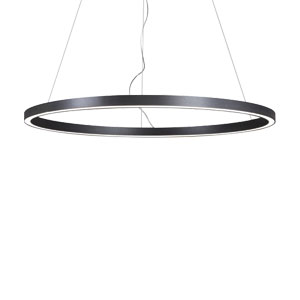

CIRCUS ULTRA-SLIM +


• Suspended by parallel wires or to a central ceiling rose • 8 different sizes ranging from 600mm to 3500mm diameters • Direct-Indirect lighting in 2700K, 3000K or 4000K colour temperatures, with more on request • A range of dimming/control options including Fixed Output, 1-10V, DALI, Touch-Dim or Casambi control • CRI >80 as standard, with >90 on request • High Efficiency Medium Power LED with Opal diffuser • White, Black, Silver, Graphite, Copper and Champagne finish

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 38 (W) x 55 (H) x Various Diameters (see datasheet)
Cut-out (mm): N/A
Lifetime: 50,000 hrs
Mounting Type: Suspended Parallel, Suspended Central
Finish: White, Black, Silver, Graphite, Copper, Champagne.
Emergency: N/A
Weight: -
Lighting Options
Light Source: Direct-Indirect Medium Power LED
Driver: Fixed Output, 1-10V, DALI*, Touch Dim, Casambi control
Colour Temperature: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K
Beam Angle: N/A
Diffuser: Opal
Operating Voltage: 230V
IP Rating: IP20
CRI: CRI80, CRI90
Delivered Lumens (lm): from 4920lm to 29640lm
Power Consumption (W): from 43W to 268W
Efficiency (lm/W): up to 111lm/W
Optional Extras: Custom finishes on request
Additional Information
* Separately dimmable direct-indirect DALI driver option on request.
