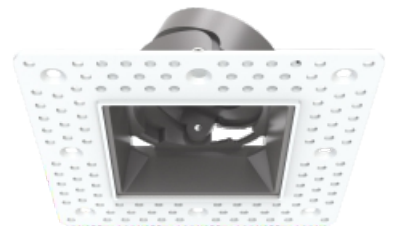

IVY SQUARE TRIMLESS


• Recessed Square Downlight • 30 degree adjustability • Matt White Trim • Bridgelux Thrive Full Spectrum LED Engine • CRI 98 as standard • 10°, 15°, 24°, 38°, 55° beam angles • 2700K, 3000K, 4000K and tuneable white colour temperatures • Fixed Output, L&TE, 0-10V, DALI Dimming or Casambi control

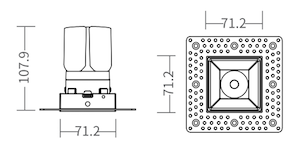

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 72(D) x 108/112 (H)
Cut-out (mm): 72 (D)
Lifetime: 50,000 hrs
Mounting Type: Recessed Trimless
Finish: Matt White.
Emergency: on request
Weight: < 1.0 kg
Lighting Options
Light Source: BRIDGELUX THRIVE FULL SPECTRUM
Driver: Fixed Output, 0-10V, DALI
Colour Temperature: 2700K, 3000K, 4000K
Beam Angle: 10°, 15°, 24°, 38°, 55°
Diffuser:
Operating Voltage: 230V DC 225 - 350mA
IP Rating: IP20 (IP44 ON REQUEST)
CRI: 98
Delivered Lumens (lm): 639lm | 1016lm
Power Consumption (W): 9W | 15W
Efficiency (lm/W): 67 LM/W
Optional Extras: Emergency conversion on request
