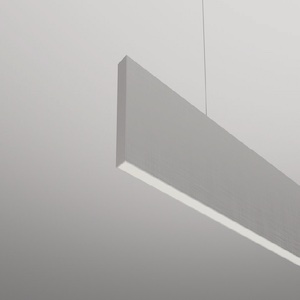

EDGE

• Slim Suspended linear light System • Standard modular lengths or Continuous System • Direct or Direct-Indirect lighting with a choice of Low/Medium/High Power LED Light Source • Compact fixed output drivers, or a range of dimming options including DALI, 1-10V, Switch-Dim or Casambi control • White, Black, Silver or Custom Finishes

DIMENSIONS

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	17 (W) x 75 (H)
Cut-out (mm):	N/A
Lifetime:	50,000 hrs
Mounting Type:	Suspended, Wall Mounted
Finish:	White, Black, Silver.
Emergency:	DALI or Standard emergency conversion
Weight:	-
Lighting Options
Light Source:	Low Power, Medium Power, High Power LED
Driver:	Fixed Output, 1-10V, DALI, Touch Dim, Casambi control
Colour Temperature:	2700K, 3000K, 3500K, 4000K, TW, RGBW
Beam Angle:
Diffuser:	Opal
Operating Voltage:	24V
IP Rating:	IP20
CRI:	CRI90+
Delivered Lumens (lm):	up to 4500lm/M
Power Consumption (W):	Upp to 40W/M
Efficiency (lm/W):	up to 83 lm/W
Optional Extras:

Additional Information
Wattages shown based on indivdually selected directed and indirect lighting. E.g: 14.4W Direct + 10.8W Indirect. Total wattage of 1000mm luminaire = 28.8W *Lumens packages shown based on individually selected direct and indirect lighting. E.g: 2448lm di
