SRIA WALL

• Surface mounted aluminium wall light • Direct-indirect ambient LED lighting • A choice of lengths from 600mm to 2060mm • Colour temperatures from 2200K to 6500K available • Integrated drivers with various dimming options • CRI >80 as standard, or CRI >90 on request • Emergency conversions available on request • White, Black, Silver, Graphite and Copper finishes

DIMENSIONS

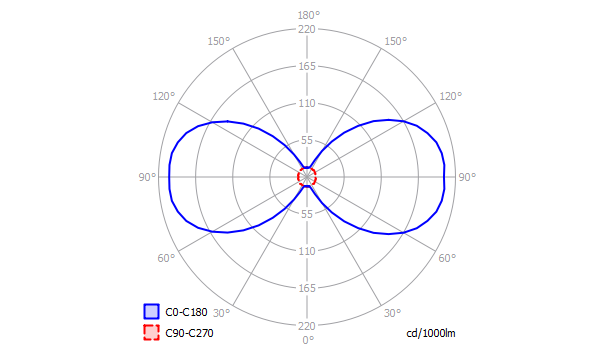

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	75 (W) x 75 (H) x various lengths from 600mm to 2060mm
Cut-out (mm):	N/A
Lifetime:	50,000 hrs
Mounting Type:	Wall Mounted (Surface)
Finish:	White, Black, Silver, Graphite, Copper, Champagne.
Emergency:	Emergency 3-hour battery with indicator LED on request
Weight:	2.6kg to 5.5kg
Lighting Options
Light Source:	Medium Power or High Power LED
Driver:	Fixed Output, 1-10V, DALI, Touch Dim, Casambi
Colour Temperature:	2200K, 2700K, 3000K, 3500K, 4000K, 6500K
Beam Angle:	N/A Direct-Indirect Ambient
Diffuser:	Opal
Operating Voltage:	230V
IP Rating:	IP20 (IP rated on request)
CRI:	80+ (CRI90+ on request)
Delivered Lumens (lm):	3200 lm/M / 4380 lm/M
Power Consumption (W):	28 W/M / 39 W/M
Efficiency (lm/W):	up to 116 lm/W
Optional Extras:	Alternative finishes, mitred corners, milled slot or lasercut lettering.
