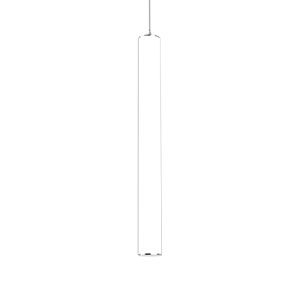

TUBE WALL OG

• Wall mounted with decorative fixings
• 60mm opal tubes in 540mm, 1040mm, 1540mm or custom lengths.
• Ambient lighting with a choice of 2700K, 3000K or 4000K colour temperatures including tuneable on request.
• A range of dimming/control options including Fixed Output, 1-10V, DALI or Touch-Dim.
• CRI >80 as standard, with >90 on request.
• Matt White, Matt Black and Matt Silver End-cap finishes.

DIMENSIONS

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	60 (D) x 540 / 1040 / 1540mm lengths
Cut-out (mm):	N/A
Lifetime:	50,000 hrs
Mounting Type:	Suspended Horizontal, Suspended Vertical, Wall Mounted*
Finish:	Matt White, Matt Black, Matt Silver (End Caps).
Emergency:	N/A
Weight:	1.0kg / 1.8kg / 2.5kg
Lighting Options
Light Source:	Medium Power LED
Driver:	Fixed Output, 1-10V, DALI, Touch Dim
Colour Temperature:	2700K, 3000K, 4000K (Tuneable on request)
Beam Angle:	N/A
Diffuser:	Opal
Operating Voltage:	24V DC
IP Rating:	IP20
CRI:	80+ (CRI90 on request)
Delivered Lumens (lm):	936lm / 1872lm / 2808lm
Power Consumption (W):	19.2W / 38.4W / 57.6W
Efficiency (lm/W):	50lm/W
Optional Extras:
