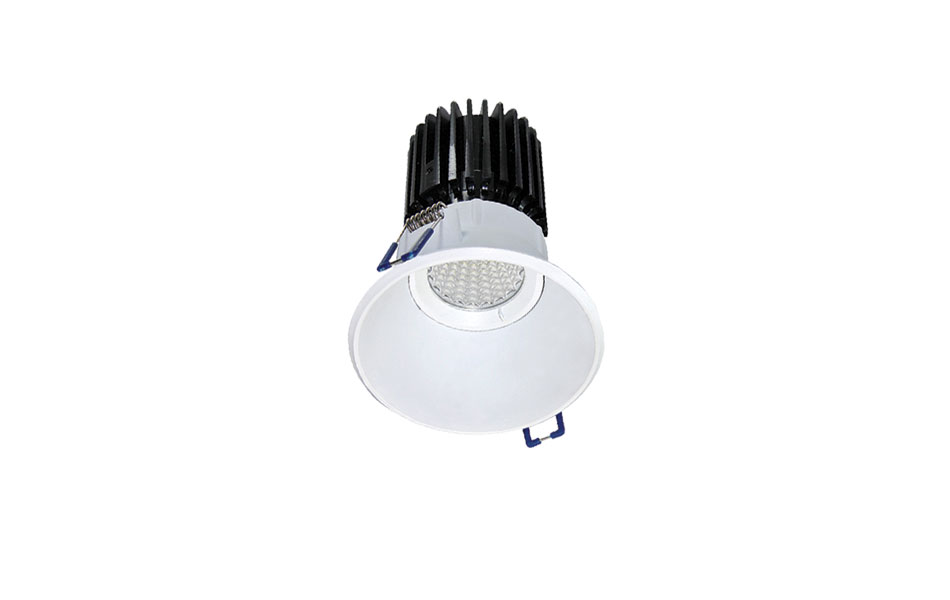

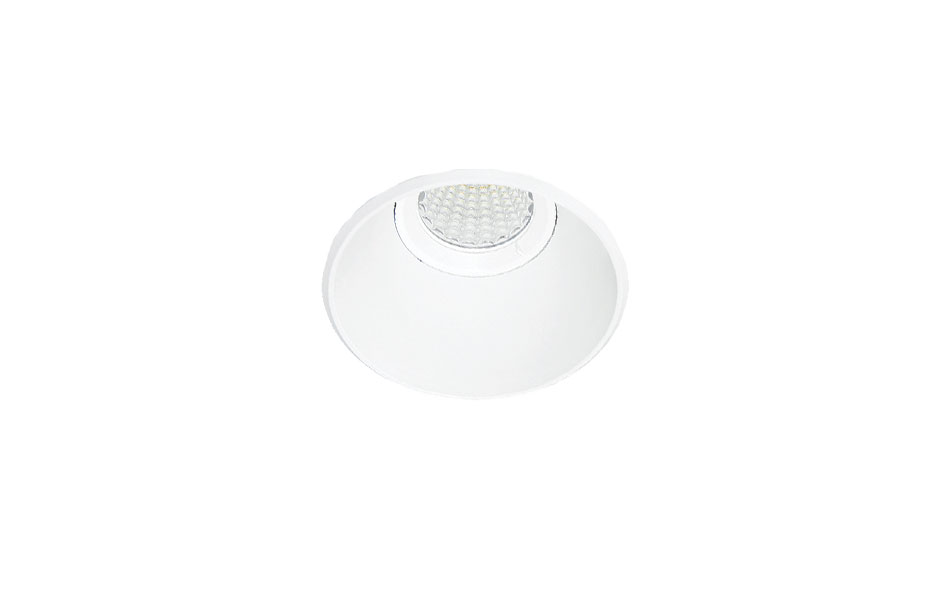

CONICA

• Recessed Round Conical Downlights • 5 different architectural bezel styles • Matt White Trim in Fixed, Adjustable and Asymmetric • Bridgelux 9W or 15W LED Engines • 25W, 35W and 50W engines for Conica 4 & 5 • CRI 80+ as standard • Spot, Medium & Flood beam angles • 2700K, 3000K and 4000K colour temperatures • Fixed Output, L&TE, 0-10V, DALI Dimming or Casambi control

DIMENSIONS

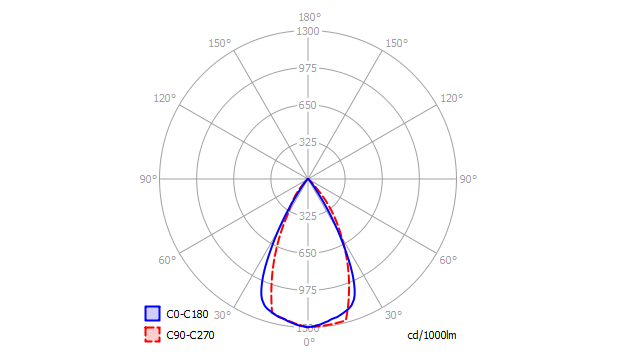

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	Conica 1: 99 (D) x 105 - 128 (H)
Cut-out (mm):	90 - 95 (D)
Lifetime:	50,000 hrs
Mounting Type:	Recessed Trim
Finish:	Matt White.
Emergency:	on request
Weight:	< 1.0 kg
Lighting Options
Light Source:	CREE XPE COB LED
Driver:	Fixed Output, L&TE, 0-10V, DALI
Colour Temperature:	2700K, 3000K, 4000K
Beam Angle:	Spot 20°, Medium 40°, Flood 55°
Diffuser:	N/A
Operating Voltage:	230V DC 200 - 450mA
IP Rating:	IP20
CRI:	>80
Delivered Lumens (lm):	665lm \| 1040lm *
Power Consumption (W):	9W \| 15W *
Efficiency (lm/W):	75lm/W
Optional Extras:
