DOUBLE ECLAIRAGE

• High strength plaster wall lamp
• 440mm wide bowl
• Top and bottom transparent screens
• Luminaire bracket mounted directly to the Wall
• Direct-Indirect wall wash lighting
• Fixed Output or DALI dimmable drivers
• Painted finish in White, Black, Flourescent or Metallic options

DIMENSIONS

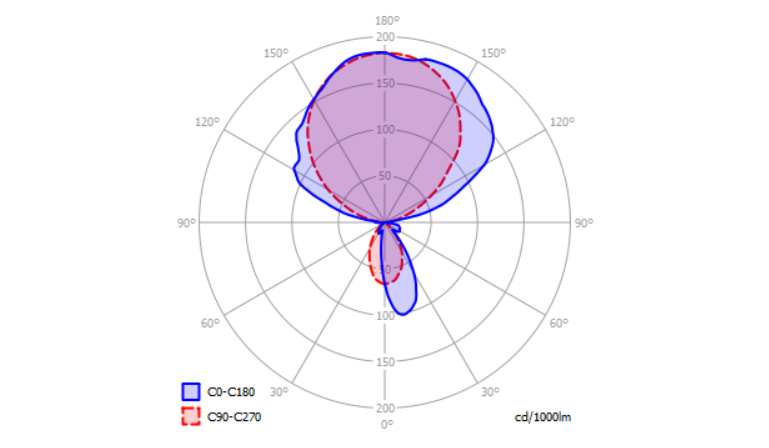

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	440 (W) x 135 (H) x 207mm (D)
Cut-out (mm):	N/A
Lifetime:	50,000 hrs
Mounting Type:	Wall Mounted
Finish:	Natural Plaster.
Emergency:	N/A
Weight:	3.2 kg
Lighting Options
Light Source:	E27 Halogen or Fluocompact (not supplied), or integrated COB LED
Driver:	Fixed Output, DALI Dimmable (1-10V Dimmable on request)
Colour Temperature:	3000K
Beam Angle:	N/A Direct-Indirect
Diffuser:	Clear Cover (top and bottom)
Operating Voltage:	100-240V AC 50-60Hz
IP Rating:	IP20
CRI:	CRI 80
Delivered Lumens (lm):	INDIRECT: 1860 lm, DIRECT: 930 lm (COB LED SOURCE)
Power Consumption (W):	22.5 W (350mA)
Efficiency (lm/W):	124 lm/W
Optional Extras:	Alternate finishes, colour temperatures and LED sources on request
