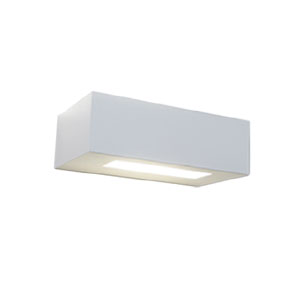

SAQQARA

• High strength plaster wall lamp
• 250mm wide brick
• IP20 with top transparent screen
• Luminaire bracket mounted directly to the Wall

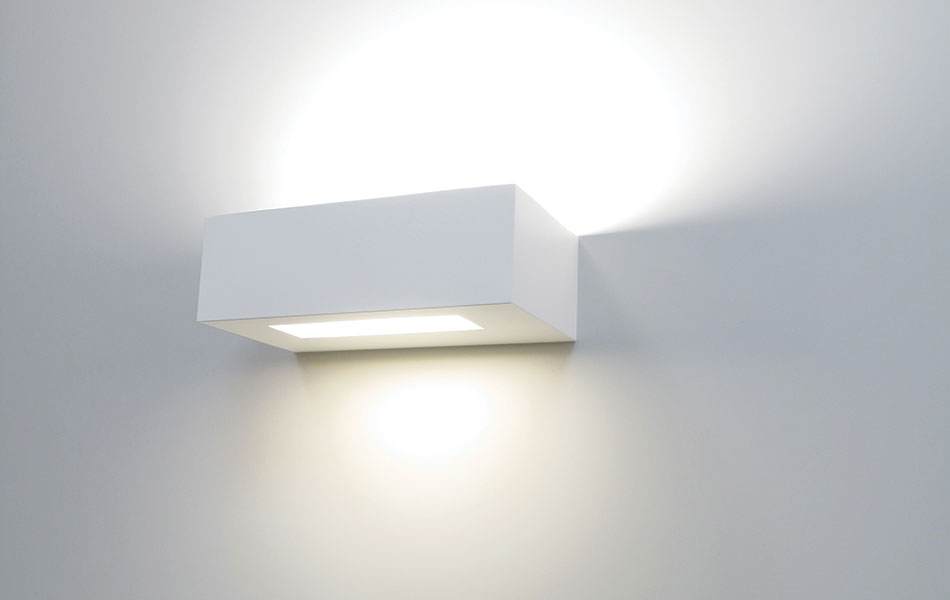

• Direct-Indirect wall wash lighting
• Retrofit Fluocompact or integrated COB LED source
• Fixed Output or DALI dimmable drivers
• Painted finish in White, Black, Flourescent or Metallic options

DIMENSIONS

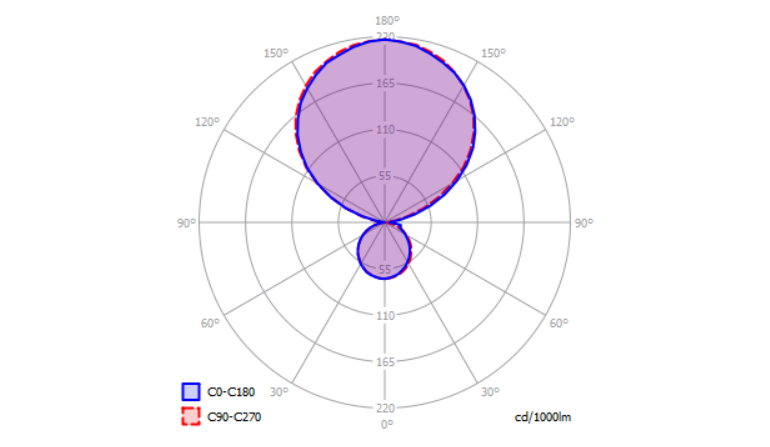

POLAR CURVE

SPECIFICATION

Product Options
Dimensions (mm):	250 (W) x 80 (H) x 135mm (D)
Cut-out (mm):	N/A
Lifetime:	50,000 hrs
Mounting Type:	Wall Mounted
Finish:	Natural Plaster.
Emergency:	N/A
Weight:	1.7 kg
Lighting Options
Light Source:	GX24q Fluocompact (not supplied), or integrated COB LED
Driver:	Fixed Output, DALI Dimmable (1-10V Dimmable on request)
Colour Temperature:	3000K
Beam Angle:	N/A (Direct-Indirect)
Diffuser:	Clear Cover (top)
Operating Voltage:	100-240V AC 50-60Hz
IP Rating:	IP20
CRI:	CRI 80
Delivered Lumens (lm):	2910 lm (source)
Power Consumption (W):	23.4 W
Efficiency (lm/W):	124 lm/W
Optional Extras:	Alternate finishes, colour temperatures and LED sources on request
