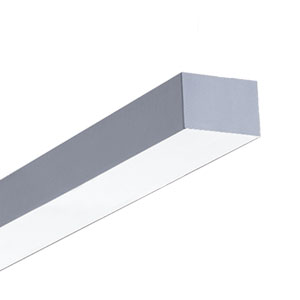

QUAD 81 FLAT WALL +


• Surface / Wall Mounted and Suspended linear lights
• Standard modular lengths with Fast-Track lead times
• Direct or Direct-Indirect lighting with a choice of Low/Medium/
High Power Opal or Microprismatic Optic (MPO) LED
• Compact fixed output drivers, or a range of dimming options
including DALI, 1-10V and Switch-Dim control
• Available on request - corner modules, sensors, Integrated
emergency conversions, IP54 rated and more
• White, Black, Silver, Graphite, Copper and Champagne finish

DIMENSIONS

POLAR CURVE


SPECIFICATION

Product Options
Dimensions (mm): 120 (W) x 55 (H) x various modular lengths
Cut-out (mm): N/A
Lifetime: 50,000 hrs
Mounting Type: Surface, Suspended, Wall Mounted
Finish: White, Black, Silver, Champagne Gold, Copper, Graphite.
Emergency: DALI or Standard emergency conversion
Weight: -
Lighting Options
Light Source: Medium Power, High Power
Driver: Fixed Output, 1-10V, DALI, Touch Dim
Colour Temperature: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K
Beam Angle: (Direct-Indirect 60/40%)
Diffuser: Opal, MPO
Operating Voltage: 230V
IP Rating: IP20
CRI: CRI80, CRI90
Delivered Lumens (lm): from 4210lm to 9630lm*
Power Consumption (W): from 35W to 76W
Efficiency (lm/W): up to 127lm/W
Optional Extras: Integrated sensors on request
Additional Information
*Luminaire luminous flux with Opal diffuser at 4000K. Dir-Ind.60/40%
