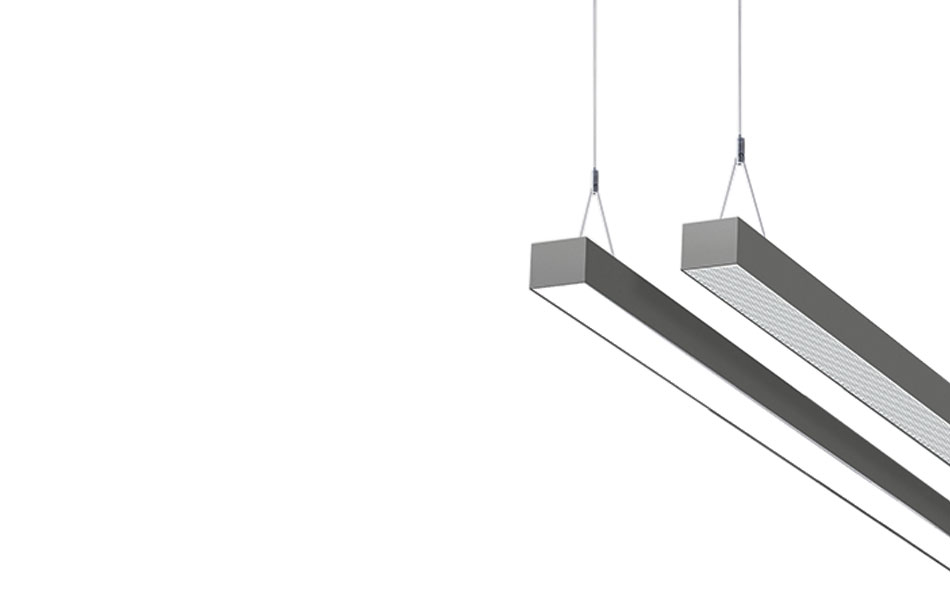

• Surface / Wall Mounted and Suspended linear lights
• Standard modular lengths with Fast-Track lead times
• Direct or Direct-Indirect lighting with a choice of Low/Medium/High Power Opal or Microprismatic Optic (MPO) LED
• Compact fixed output drivers, or a range of dimming options including DALI, 1-10V and Switch-Dim control
• Available on request – corner modules, sensors, Integrated emergency conversions, IP54 rated and more

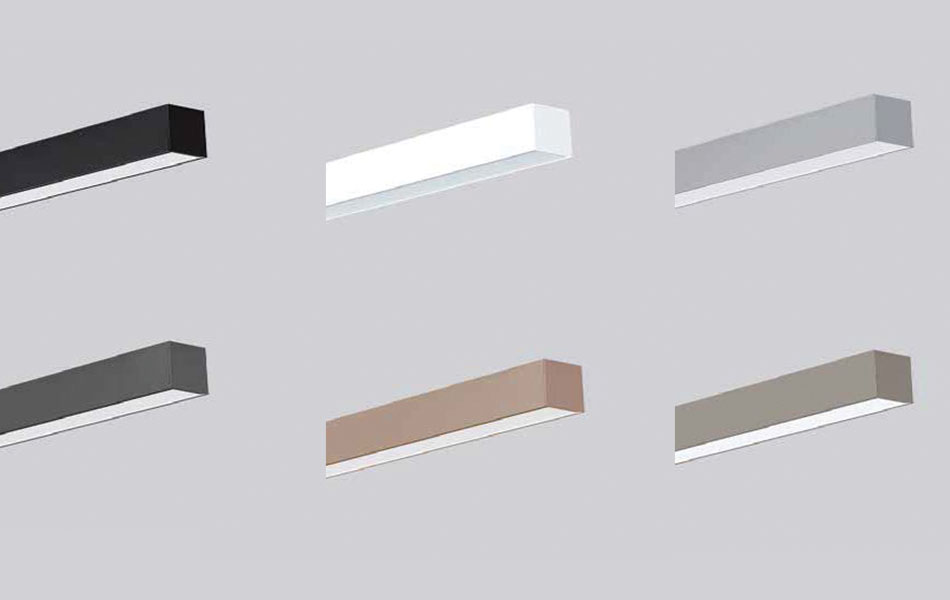

• White, Black, Silver, Graphite, Copper and Champagne finish

Product Options

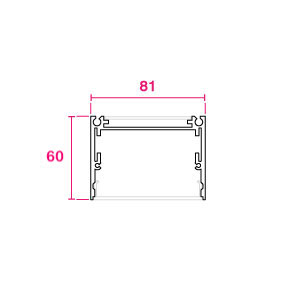

Dimensions (mm):	81 (W) x 55 (H)
Cut-out (mm):	N/A
Lifetime:	50,000 hrs
Mounting Type:	Surface, Suspended, Wall Mounted
Finish:	White, Black, Silver, Graphite, Copper, Champagne.
Emergency:	DALI or Standard emergency conversion on request
Weight:	-
Lighting Options
Light Source:	Low Power, Medium Power, High Power LED
Driver:	Fixed Output, 1-10V, DALI, Touch Dim
Colour Temperature:	2200K, 2700K, 3000K, 3500K, 4000K, 6500K
Beam Angle:	(Direct only 100% or Direct-Indirect 60/40%)
Diffuser:	Opal, MPO
Operating Voltage:	230V
IP Rating:	IP20 (IP54 Rated version on request)
CRI:	CRI80, CRI90
Delivered Lumens (lm):	up to 3660 lm/M DIRECT, 5680 lm/M DIRECT-INDIRECT
Power Consumption (W):	up to 29 W/M DIRECT, 48 W/M INDIRECT
Efficiency (lm/W):	up to 118.3 lm/W
Optional Extras:	Integrated sensors, spotlights and 90° corners on request

Additional Information
*Luminaire luminous flux with Opal diffuser at 4000K.
